Terminal Blocks
SPECIFICATIONS
|
A.W.G. |
AMP |
VOLT |
SCREW SIZE |
|
20-18 |
20A |
600V |
M2.6 x 5 |
|
22-10 |
30A |
600V |
M3.0 x 6 |
|
22-10 |
35A |
600V |
M3.5 X 7 |
|
20-8 |
50A |
600V |
M4.0 x 9 |

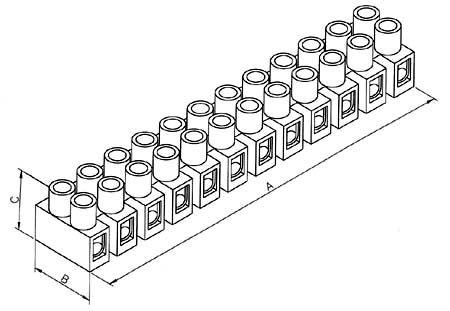

DIMENSIONS (inches/mm)
|
A |
B |
C |
D |
E |
F |
|
3.74 96.2 |
0.67 17.0 |
0.57 14.5 |
0.32 8.0 |
0.11 2.9 |
0.11 2.9 |
|
4.63 117.0 |
0.80 20.2 |
0.67 17.0 |
0.39 10 |
0.14 3.6 |
0.13 3.2 |
|
5.54 140.7 |
0.94 23.8 |
0.75 19.0 |
0.48 12.2 |
0.15 3.8 |
0.15 3.9 |
|
6.22 158.0 |
1.01 25.6 |
1.0 25.2 |
0.53 13.5 |
0.17 4.3 |
0.19 4.8 |
