Push-On

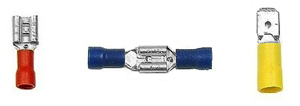

Partially Insulated Quick-Slides

FEMALE

WIRE RANGE A.W.G.	NEMA TAB SIZE	ELECTRICAL CURRENT	VOLTS	INSULATION MATERIAL
22-16	0.020 x 0.110 (0.5 x 2.8)	10 amperes	300V	Vinyl
22-16	0.020 x 0.187 (0.5 x 4.75)	10 amperes	300V	Vinyl
22-16	0.032 x 0.250 (0.8 x 6.35)	10 amperes	300V	Heat Shrink, Bare, Vinyl or Nylon
16-14	0.020 x 0.110 (0.5 x 2.8)	15 amperes	300V	Vinyl
16-14	0.020 x 0.187 (0.5 x 4.75)	15 amperes	300V	Vinyl
16-14	0.032 x 0.250 (0.8 x 6.35)	15 amperes	300V	Heat Shrink, Bare, Vinyl or Nylon
16-14	0.020 x 0.205 (0.8 x 5.20)	15 amperes	300V	Vinyl
12-10	0.032 x 0.250 (0.8 x 6.35)	24 amperes	300V	Heat Shrink, Bare, Vinyl or Nylon
12-10	0.032 x 0.375 (0.8 x 9.52)	24 amperes	300V	Vinyl

MALE

WIRE RANGE A.W.G.	NEMA TAB SIZE	ELECTRICAL CURRENT	VOLTS	INSULATION MATERIAL
22-16	0.020 x 0.110 (0.5 x 2.8)	10 amperes	300V	Vinyl
22-16	0.032 x 0.250 (0.8 x 6.35)	10 amperes	300V	Heat Shrink, Bare, Vinyl or Nylon
16-14	0.020 x 0.187 (0.5 x 4.75)	15 amperes	300V	Vinyl
16-14	0.032 x 0.250 (0.8 x 6.35)	15 amperes	300V	Heat Shrink, Bare, Vinyl or Nylon
12-10	0.032 x 0.250 (0.8 x 6.35)	24 amperes	300V	Heat Shrink, Bare, Vinyl or Nylon

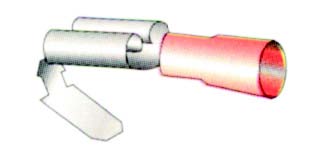

Piggy Back

WIRE RANGE

A.W.G.

NEMA TAB

SIZE

ELECTRICAL

CURRENT

VOLTS

INSULATION

MATERIAL

22-16

0.032 x 0.250

(0.8 x 6.35)

10 amperes

300V

vinyl

16-14

0.032 x 0.250

(0.8 x 6.35)

15 amperes

300V

vinyl

DOUBLE PUSH ON CONNECTOR UNINSULATED 16-14 .250

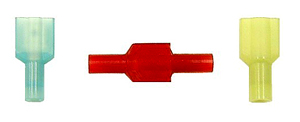

Fully Insulated Quick-Slides

FEMALE

MALE

Also available in a Flat side fully insulated
